TIADA | Item | Piawai | Catatan |
1 | Model | AIN36-30000 | |
2 | Spesifikasi Sel | 18650 / 3350mAh / 3.6V | |

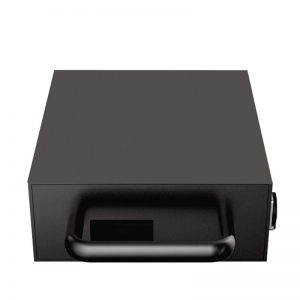

3 | Pek bateri | 18650-10S9P-30Ah-36V | |
4 | Kapasiti Dinilai | 30Ah | Boleh disesuaikan |
5 | Kapasiti Min | 28.5Ah | |
6 | Tenaga | 1080Wh | |
7 | Voltan Nominal | 36V | Boleh disesuaikan |
8 | Voltan Sebelum Penghantaran | ≥39V | |
9 | Rintangan Batin | ≤150mΩ | |
10 | Mengecas Voltan | 42.0±0.2V | |
11 | Voltan Pengecasan Terapung | 42.5±0.2V | |
12 | Standard Pengecasan Semasa | 6A | 0.2C |
13 | Pengecasan Maksimum Semasa | 15A | 0.5C |
14 | Arus Pelepasan Piawai | 6A | Boleh disesuaikan |
15 | Arus Pelepasan Maksimum | 25A | Boleh disesuaikan |
16 | Arus pelepasan puncak | 70A/0.1s | |
17 | Tamatkan Voltan | 27.5V | |
18 | Saiz | Length 235±1 mm | Boleh disesuaikan |
Wide 190±1 mm | Boleh disesuaikan | ||
Thickness 85±1 mm | Boleh disesuaikan | ||
19 | Berat | 约 6.5kg±0.5kg | |
20 | Cara Keluaran | Boleh disesuaikan | |
21 | Suhu bekerja | Caj : 0 ~ 45 ℃ | |
Pelepasan : -20 ~ 60 ℃ | |||
Suhu Kerja yang Disyorkan: 15 ℃ ~ 35 ℃ | |||
22 | Kadar pelepasan diri | The Residual Capacity: ≤3%/Month; ≤15%/year | |
Kapasiti yang Boleh Dipulihkan : ≤1.5% / Bulan; ≤8% / Tahun | |||
23 | Persekitaran Penyimpanan | Kurang Dari Sebulan: -20 ~ + 35 ℃ 、 45 ~ 75% RH | |
Kurang dari 3 Bulan: -10 ~ + 35 ℃ 、 45 ~ 75% RH | |||
Persekitaran Penyimpanan yang Disyorkan : 15 ~ 30 ℃ 、 45 ~ 75% RH | |||
24 | Jaminan | 12 bulan | |
25 | Standard Operasi | GB31241-2014 | |
Penyimpanan masa yang lama: When the battery needs to be stored for a long time, it should be charged to nearly 50% of the battery with a voltage of about 39V and placed under the recommended storage conditions. Do a full charge and discharge cycle at least once every 6 months (charge first, discharge and then recharge 50%). Bidang Permohonan: Electric uav room patrol inspection lithium battery, medical equipment and equipment power supply, security instruments and meters, wireless monitoring equipment, RGV rail transit, unmanned ships, security backup power supply, etc Ciri-ciri utama: 1. Shockproof and waterproof: Shockproof structure is designed by filling the inner shell of aluminum alloy to meet the requirements of portability, high safety and high reliability; 2, super large capacity: imported high energy density 18650/3.6 V/3350mAh cell, small volume, high capacity. 3. Reliable connection: Industrial aviation connector, fast, safe and reliable; 4. Communication protocol: RS485 communication protocol is adopted to facilitate reading of battery capacity, temperature, power supply, current and other information. 5. The battery pack is safe with a temperature probe, and the temperature exceeds that of automatic starting protection; 6. Battery pack cycle life is high, in line with the values of low carbon, energy saving and environmental protection; |
