48v 100ah 200ah borong kuasa hibrid rumah storan dipasang di dinding boleh dicas semula pek bateri litium solar lifepo4

2023-08-18 06:01

Spesifikasi

Model No	AIN HP5.1L-A1	AIN HP7.6L-A1	AIN HP10.2L-A1
Nominal Parameters
voltan	48/51.2V	48/51.2V	48/51.2V
Kapasiti	100Ah	150Ah	200Ah
Tenaga	5.12kwh	7.68kwh	10.24kwh

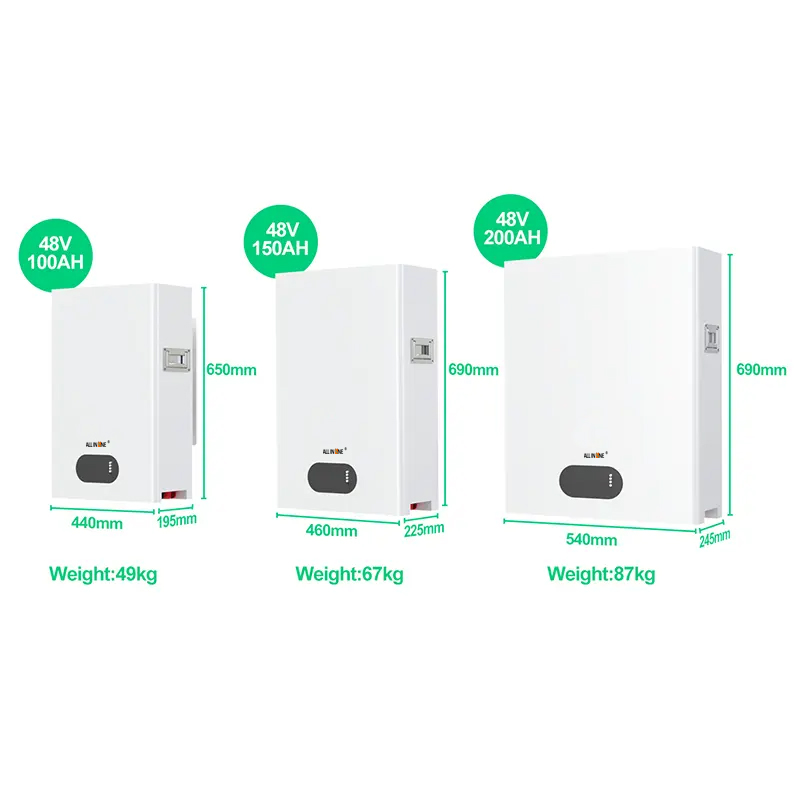

Dimensions (L xWxH)	440x695x195mm	460x690x225mm	540x690x245mm
Berat	49kg	67kg	87kg
Parameter Asas
Life Times (25C)	20 Years	20 Years	20 Years
Life Cycles (80% DOD, 25°C)	5000 Cycles	5000 Cycles	5000 Cycles
Storage Time /Temperature	5 months @25°C; 3 months @35°C; 1 month @45°C	5 months @25°C; 3 months @35°C; 1 month @45°C	5 months @25°C; 3 months @35°C; 1 month @45°C
Suhu Operasi	""-20°C to 60°C @60+/- 25% Relative Humidity	""-20°C to 60°C @60+/- 25% Relative Humidity	""-20°C to 60°C @60+/- 25% Relative Humidity
Suhu Penyimpanan	0°C hingga 45°C @60+/-25% Kelembapan Relatif	0°C hingga 45°C @60+/-25% Kelembapan Relatif	0°C hingga 45°C @60+/-25% Kelembapan Relatif
Standard Bateri Litium	1EC62619 (Cell&Pack), CE, CEC, RCM, UN38.3
Enclosure Protection Rating	IP31Rating
Electrical Parameter
Operation Voltage	40-57.6Vdc	40-57.6Vdc	40-57.6Vdc
Max charging Voltage	58Vdc	58Vdc	58Vdc
Max charging and Dis charging Current	100A	150A	200A
Kekuatan maksimum	5120W	7680W	10240W

Kilang Kami

ALL IN ONE is a professional manufacturer engaged in R&D and manufacturing of clean energy, the main products include Lithium iron battery pack for 48V and high-volt solar system photovoltaic solar off-grid inverter, photovoltaic solar controller, transformers.Guangdong Eco-contain New Energy Co.,Ltd is a global clean energy solution service provider. We are committed to providing one-stop energy solutions including energy supply, energy management and energy storage to customers around the world. With strict Quality control system, we have obtained CE, MSDS, UN38.3 and so on, our batteries are sold all over the world and enjoy very good reputation in more than 40 Countries such as USA, Canada, Jamaica, UK, Germany, France, Netherlands, Belgium, Finland, Denmark, Switzerland, Australia, New Zealand, Colombia, South Korea, Japan, India, Nepal and so on.

Soalan Lazim

S: Adakah anda syarikat perdagangan atau pengeluar?
A: We are ALL IN ONE original factory.

S: Bolehkah saya mempunyai sampel untuk diuji? Dan apakah masa utama untuk pesanan sampel?
A: Yes,we can supply samples,the lead time for samples is 3-5 days.and buyer pay for sample cost and shipping cost.

S: Adakah anda menyediakan perkhidmatan selepas jualan?
J: Ya, jaminan adalah 12 bulan, jika ada masalah kualiti dari pihak kami dalam tempoh ini, kami boleh menghantar yang baru sebagai pengganti.

Q: Adakah anda menerima OEM / ODM?
J: Ya, ia ada.

Q: Adakah anda kapasiti sebenar bateri?
J: Semua sel bateri kami dengan Gred A, 100% kapasiti baru dan nyata.

S: Apakah jenis sijil yang anda ada?
J: Kami boleh menyediakan CE, ROHS, FCC, IEC62133, MSDS, UN38.3 jika kuantiti pesanan anda besar.

Q: Adakah anda mempunyai MOQ?
J: Tidak terhad. Pesanan kecil juga dialu-alukan. Lebih banyak kuantiti mempunyai harga yang lebih baik, kami akan memeriksa harga terbaik untuk anda.

Q: Apakah tempoh pembayaran anda?
A: Kami menggunakan kaedah pembayaran T / T, Paypal, Alibaba dan sebagainya.

Q:How about the after sales?
A: Damage in transit will be resolved according to the contract terms.
During the warranty period, if there is a problem with the product, our engineers will first propose a solution according to the
specific situation. If the product still has a problem, it will be refunded or replaced for free.
