51.2v 65Ah kereta golf lifepo4 pek bateri ion litium kitaran dalam IP67

2024-06-28 03:25

Spesifikasi

Model	AIN51105W	AIN51105S	AIN5165S	AIN51150S	AIN76105S
Voltan Nominal	51.2V	51.2V	51.2V	51.2V	76.8V
Kapasiti Nominal	105Ah	105Ah	65Ah	150Ah	105Ah
Rated Energy	5370Wh	5370Wh	3320Wh	7680Wh	5370Wh
Maximum Charge Voltage	58.4V	58.4V	58.4V	58.4V	87.6V
Caj Maksimum Semasa	100A	100A	60A	150A	100A
Pelepasan berterusan berterusan maksimum	150A	150A	130A	200A	200A
Maximum Peak Discharge Current (30 seconds)	300A	300A	250A	300A	300A
Voltan Pemotongan Pelepasan	43.2V	43.2V	43.2V	43.2V	43.2V
Driving Mileage	65-80km	65-80km	40-60km	90-120km	100-130km
Mengecas Suhu	0 ~ + 55 ℃	0 ~ + 55 ℃	0 ~ + 55 ℃	0 ~ + 55 ℃	0 ~ + 55 ℃
Suhu Pelepasan	-20 ~ + 60 ℃	-20 ~ + 60 ℃	-20 ~ + 60 ℃	-20 ~ + 60 ℃	-20 ~ + 60 ℃
Cycle Life (25℃, 0.5C, 100% DOD)	>6000	>6000	>6000	>6000	>6000
Terminals	M8 Nut	M8 Nut	M8 Nut	M8 Nut	M8 Nut
Tahap Perlindungan	IP67	IP65	IP65	IP65	IP65
Dimensions(mm)	547*334*245	457*298*253	465*243*228	675*325*260	674*338*275
Berat	48.3kg	49kg	32kg	71kg	72.8kg
Communication Protocol	BOLEH / RS485	RS485	RS485	BOLEH / RS485	BOLEH / RS485



Ciri-ciri utama

1, PET is able to bear 850kg, avoid bulging

2, CCS vehicle-grade craft,integrated wires

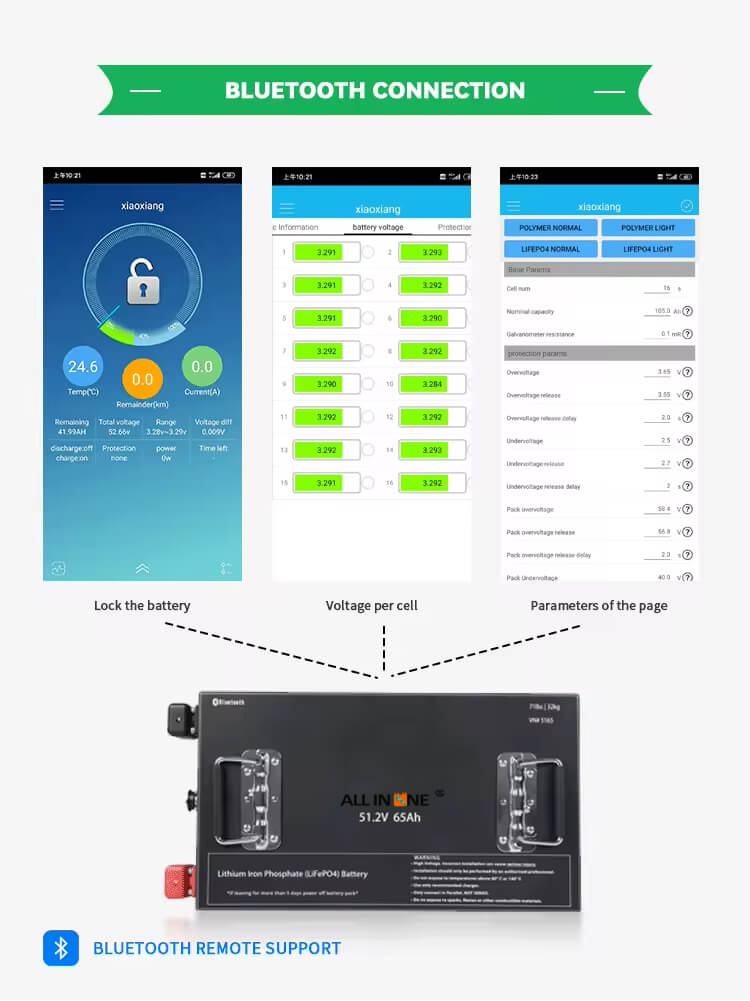

3, Support RS485/CAN/Bluetooth etc

4, 3-4mm metal plates at both side

5, Reserve 1mm width for potential bulging

6, Distributed sampling system to solve sampling impedance problem.

Kami Berjanji
1. Semua produk akan diuji 100% sebelum penghantaran untuk memastikan produk tidak menghadapi masalah kualiti.
2.We guarantee that within 12 months from the date of receipt of the goods, we will not include man-made damage. If there is any quality problem, we will provide return service.



Permohonan

Kilang Kami

Pembungkusan Dan Penghantaran

Soalan Lazim

Q1:Can I have samples to test? And what is the lead time for sample orders?
A1:Yes, we can supply samples, the lead time for samples is 7-10 days. and buyer pays for sample cost and shipping cost.

S2: Adakah anda menyediakan perkhidmatan selepas jualan?
A2: Yes, the warranty is 3 years, if any quality problems on our side in this period, we can send a new one as a replacement.

S3 Apakah kelebihan syarikat anda?
A3: We only supply high-level quality of battery and we guarantee on-time shipment, we also provide excellent after-sales service

S4: Adakah anda menerima OEM / ODM?
A4: Yes, it is available.

Q5: What is your lead time for mass production?
A5: Secara umum, kira-kira 25-30 hari bergantung pada item yang berbeza setelah mendapat wang pendahuluan dan pengesahan mengenai sampel.

Q6:Are your battery real capacity?
A6: Semua sel bateri kami dengan Gred A, 100% kapasiti baru dan nyata.

S7: Adakah anda kilang atau syarikat perdagangan?
A7:ALL IN ONE Battery Technology Co Ltd is a professional rechargeable lithium-ion battery and LifePO4 battery manufacturer, welcome to visit.

S8: Apakah jenis sijil yang anda ada?
A8: Kami boleh menyediakan CE, ROHS, FCC, IEC62133, MSDS, UN38.3 jika kuantiti pesanan anda besar.
