Kitaran dalam tersuai 36V 48V 72V 50ah 80ah 100ah bateri litium untuk kereta golf RV kemping

2024-03-15 02:39

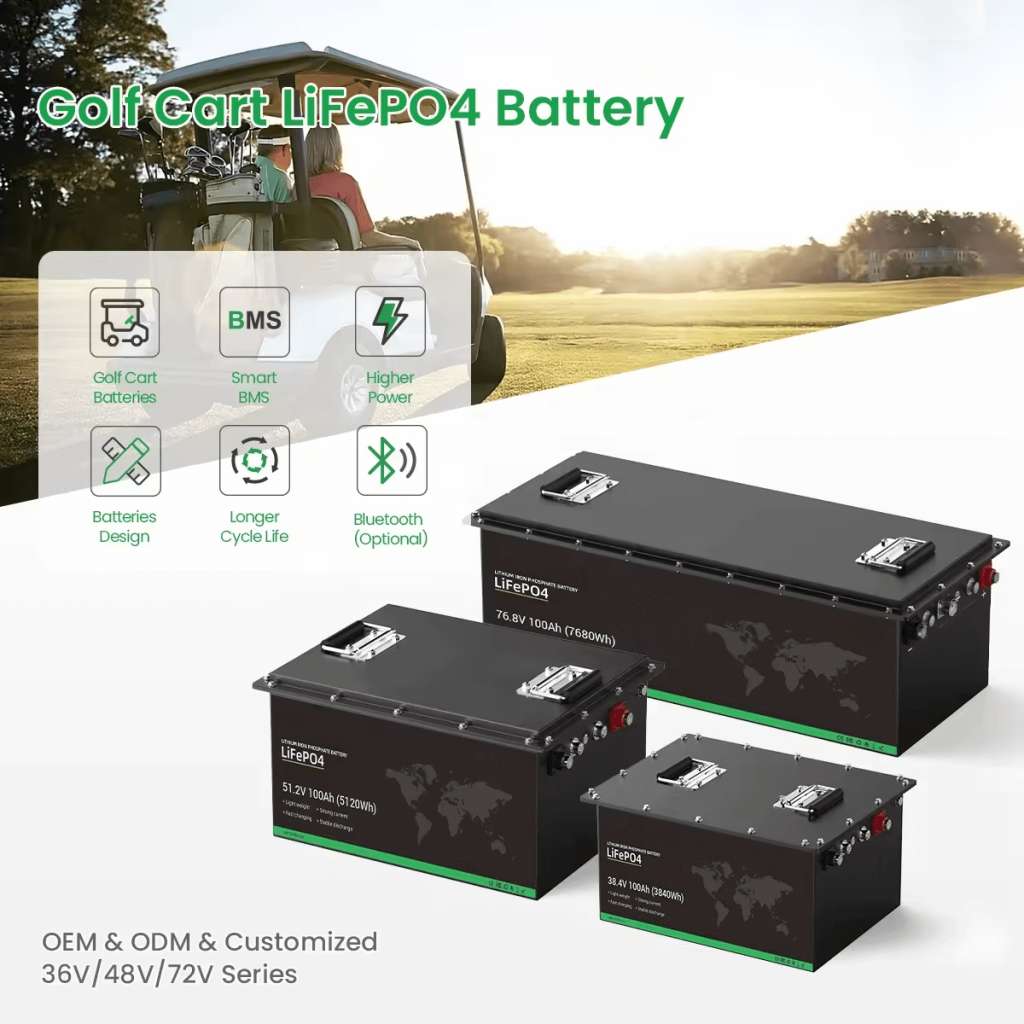

LiFePO4 Battery for Golf Cart ( OEM/ODM )

TECHNICAL SPECIFICATION

Data sheetVoltan NominalKapasiti NominalNominal EnergyDimensiBerat
36V  (Support Customized Capacity/Size)
LFP36-5038.4V50Ah1920Wh522*238*218mm≈18.5kg
LFP36-6038.4V60Ah2304Wh522*238*218mm≈21kg
LFP36-8038.4V80Ah3072Wh522*238*218mm≈25.5kg
LFP36-10038.4V100Ah3840Wh522*238*218mm≈31kg
48V  (Support Customized Capacity/Size)
LFP48-5051.2V50Ah2560Wh522*238*218mm≈25kg
LFP48-6051.2V60Ah3072Wh522*238*218mm≈31kg
LFP48-8051.2V80Ah4096Wh522*238*218mm≈32.5kg

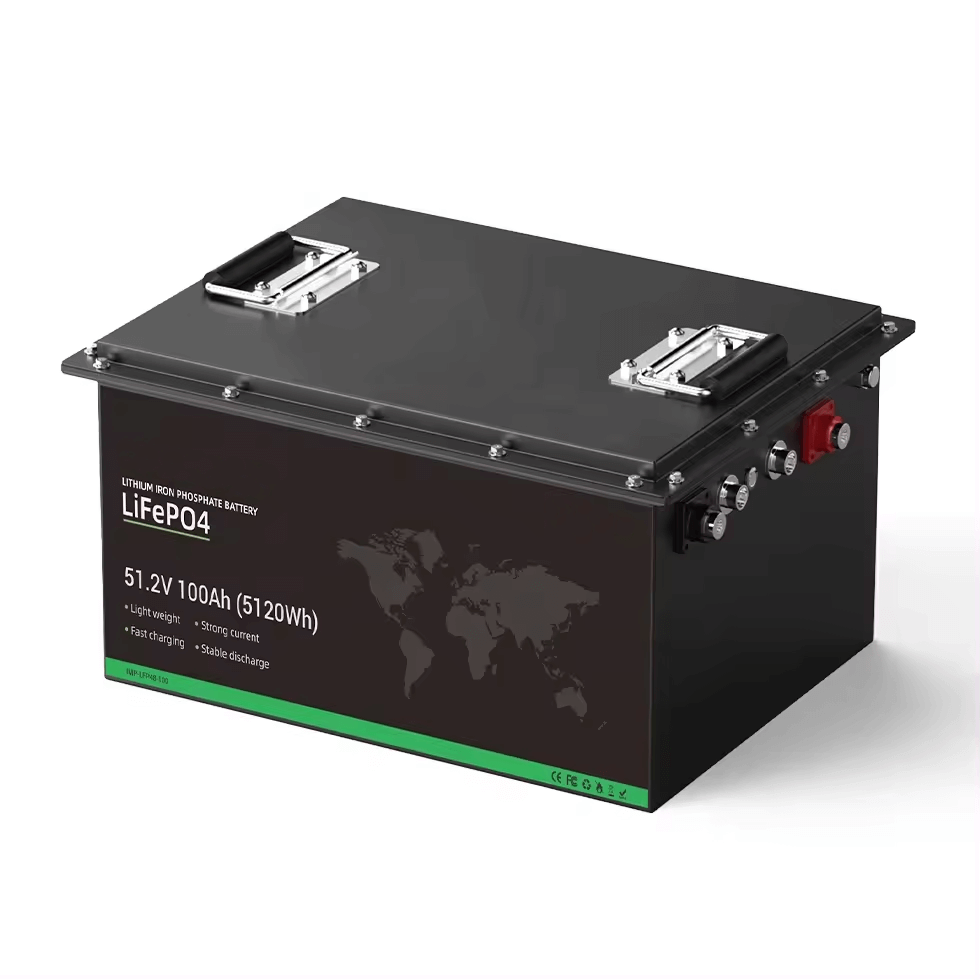

LFP48-10051.2V100Ah5120Wh640*245*220mm≈38.5kg
72V (Support Customized Capacity/Size)
LFP72-5076.8V50Ah3840Wh470*330*150mm≈50kg

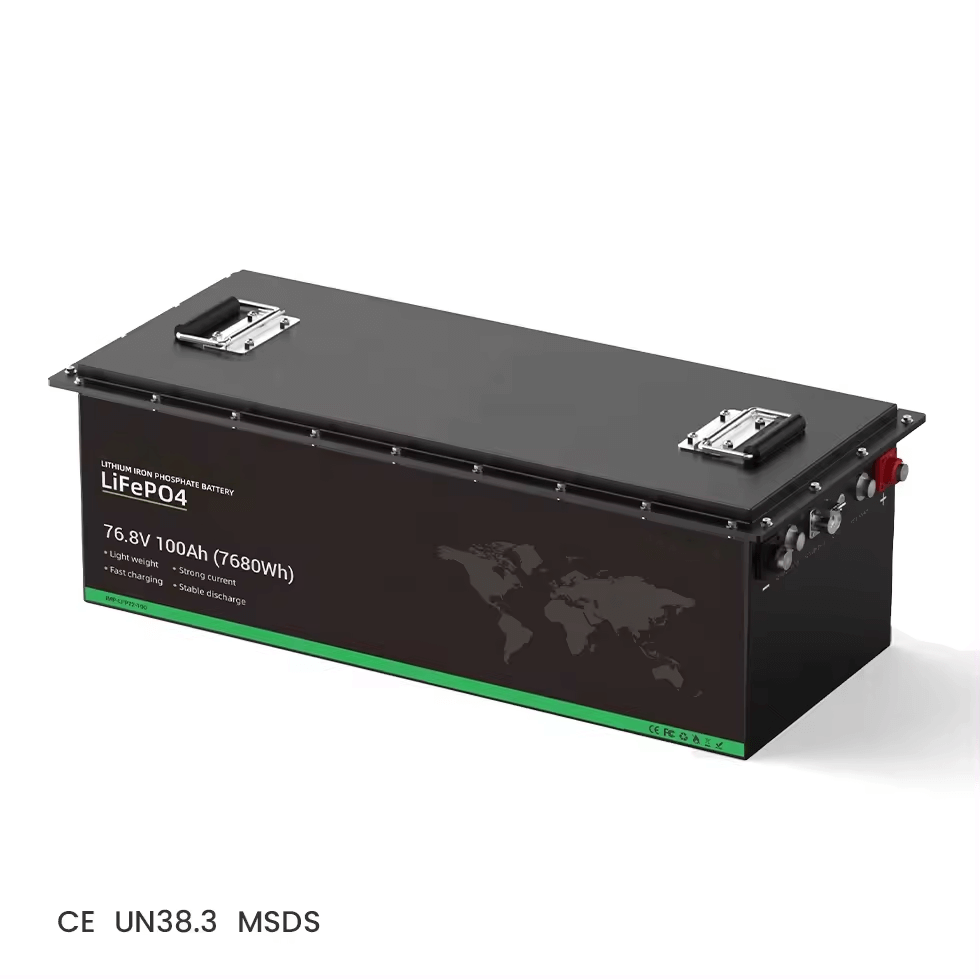

LFP72-10076.8V100Ah7680Wh730*350*150mm≈65kg
General
Kitaran Hidup≥6000 cycles (80%DOD), at 25°C
Mengecas Suhu0 ~ 45°C (32 ~ 113°F)
Suhu Pelepasan-20 ~ 55°C(-4 ~ 131F)
Suhu Penyimpanan-10 ~ 45°C(14 ~ 113°F)
Communication ModVehicle CAN/ Charge CAN/ Intranet CAN/

485 communication/ Wireless communication

The Right Choice

1. ALL IN ONE lithium batteries are drop-in solutions

2.Outlasts equivalent lead-acid batteries

3.Top quality standards and proven results in many applications

Persembahan

  1. Single battery operation
  2. Little or no voltage drop
  3. Fast travel speed at all levels of discharge

ALL IN ONE Battery Safety and Sustainability

  1. No acid fumes or spills
  2. Reduce use of electricity
  3. Less waste
  4. 99% recyclable

Permohonan

Kilang Kami



Penghantaran Dan Pembungkusan

1.Pack in safety industrial package, with IATA shipping standard.
2. For sample or small order: ship by DHL, UPS, FedEx and TNT etc…
3. Untuk pesanan besar, hantar dengan AIR atau OCEAN.

Soalan Lazim

S: Adakah anda syarikat perdagangan atau pengeluar?
A: We are ALL IN ONE original factory from Anhui Province , China.

Q. Can I print my LOGO on it?
A: YES, LOGO/sticker/OEM/ODM welcomed

Q. Can your battery be wired in series or parallel?
A: YES,YOU can connect up to ANY of these batteries in parallel. For series, suggest within 3 units.

Q. Can the BMS be removed and replaced if it breaks? Can the case be opened to replace a bad cell?
A: YES, the case can be opened to replace the BMS & cells on the guidance of engineer.

S: Bolehkah saya mempunyai sampel untuk diuji? Dan apakah masa utama untuk pesanan sampel?
A: Yes,we can supply samples,the lead time for samples is 7 days.and buyer pay for sample cost and shipping cost.

Q. What warranty do I have?
A: Warranty: 3 years, we would provide repair or replacement with the warranty period.if any quality problems on our side in this period, Please show us video or photos for confirm before we sent solution.

Q: Adakah anda menerima OEM / ODM?
A: Yes,it is available.We have OEM group to design battery case.

Q. Do you have Blue-tooth communication with your batteries?
A: Yes, please let us know if you NEED to add Blue-tooth communication with the batteries. and YOU can rename your battery in the App.

Q. Does the app allow to check the voltage of each cell?
J: YA, Aplikasi membenarkan anda membaca voltan setiap satu pada bila-bila masa.

Q: Adakah anda kapasiti sebenar bateri?
A: All of our battery cells with Grade A,100% new and real capacity. We promise 100% Top grade A. If you found it is not A battery cell, you can contact us for refund.

S: Apakah jenis sijil yang anda ada?
A: We can provide CE,ROHS,FCC,IEC62133,MSDS,UN38.3 etc.

Q: Adakah anda mempunyai MOQ?
J: Tidak terhad. Pesanan kecil juga dialu-alukan. Lebih banyak kuantiti mempunyai harga yang lebih baik, kami akan memeriksa harga terbaik untuk anda.

Q: Apakah tempoh pembayaran anda?
A: We adopt T/T,Paypal, payment way and so on. If order amount>10K usd, The payment term will be 30% T/T for deposit and the balance before shipment。

Q. If your lithium battery goes into protection mode, how do you wake it up?
J: Menggunakan pengecas litium untuk menghidupkan bateri. Pengecas litium membangunkan bateri secara automatik.

Nota: Kami adalah pengeluar bateri. Semua produk tidak menyokong runcit, kami hanya menjalankan perniagaan B2B. Sila hubungi kami untuk harga produk!
