Bateri Kenderaan Elektrik 60v 40ah 50ah 65ah Pek Bateri

2023-08-24 08:06

Spesifikasi

Parameter Fungsi
Nominal Battery Energy	3900wh
Nominal Kapasiti	65Ah
Nominal voltan	60V
Rintangan Dalaman	≤22mΩ
Kehidupan Kitaran	>6000
Pelepasan Sendiri Bulan	<3%
Data Caj
Voltan Caj Normal DC	54.75±1Vdc
Mod Pengecasan	0.2C hingga 54.75V, kemudian 54.75V, cas arus kepada 0.02C (CC/CV)
Arus Pengecas yang disyorkan	≤50A
Dibenarkan Maks. Caj Arus	50Adc
Voltan Potongan Caj	54.75±1Vdc
Data Pelepasan
Arus Pelepasan berterusan	50A
Dibenarkan Maks. arus nyahcas	100A (pilihan:100Adc)
Rang daripada voltan nyahcas DC	37.5V-54.75Vdc
Keadaan bekerja
Mengecas Suhu	0℃ hingga 45℃ (32℉ hingga 113℉) @60±25% Kelembapan Relatif
Suhu Pelepasan	-20℃ hingga 60℃ (-4℉ hingga 140℉) @60±25% Kelembapan Relatif
Suhu Penyimpanan	0℃ hingga 40℃ (32℉ hingga 104℉) @60±25% Kelembapan Relatif
Tahap Perlindungan Kepungan	IP67

ciri-ciri

1.Rechargeable battery
2.Use of Iron(Fe) as a cathode material
3.Higher discharge current
4.Do not explode under extreme conditions and weight less

Kelebihan

1.Extremely high rate capability
2.Safe lithium battery
3.Good storage characteristics
4.Good high temp performance
5.Long cycle life to 2000 times
6.High capacity & light weight
7.Environmentally friendly
8.No memory effect

We can provide you with customized services

Customized 7.4V-12V-24V-36V-48V-52V-60V-72V...LITHIUM BATTERY PACK

The capacity and dimension can customize according to your request:

1. Saiz bateri dan bahan shell yang disesuaikan

2. Pengisian dan pengisian arus BMS yang disesuaikan

3. Palam dan soket penyambung yang disesuaikan, wayar penyambung

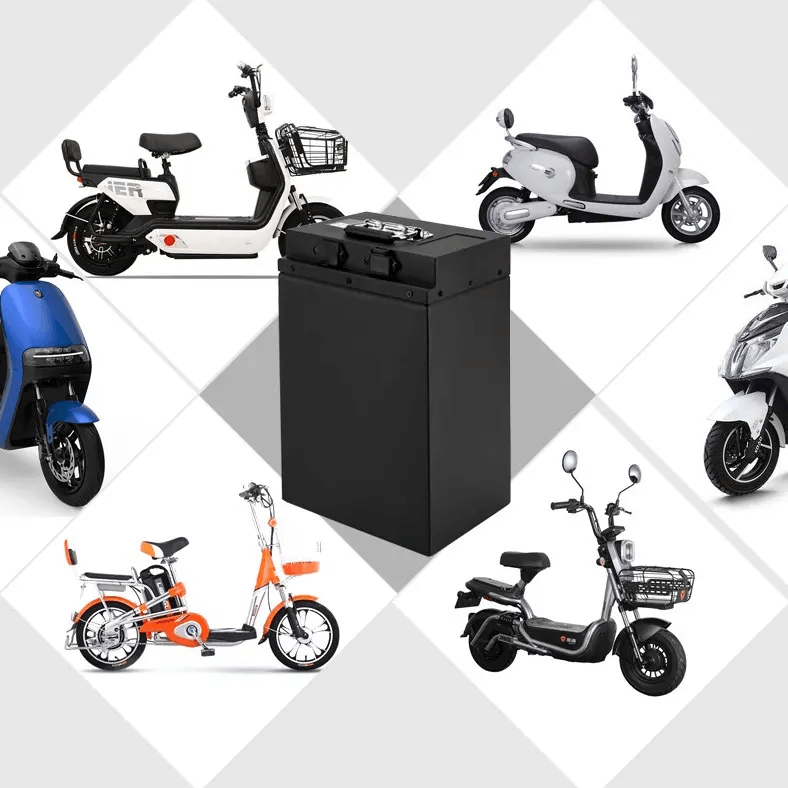

AIN Aplikasi Utama Pek Bateri Lithium
Aplikasi pendorong elektrik	bateri permulaan enjin; Kereta Berkelajuan Lambat; robot intelektual; basikal elektrik / motosikal / skuter; troli golf / kereta / kereta bersiar-siar; alat kuasa.
Penyimpanan tenaga	sistem tenaga suria dan angin; grid on / off bandar; komuniti dan keluarga, RV Caravan, kapal layar laut.
Sistem sandaran dan UPS	Telecommute base, CATV-system, computer server center, medical instrument, military equipment.
Aplikasi lain	keselamatan dan elektronik; POS bergerak, lampu perlombongan / obor / lampu LED / lampu kecemasan.

Syarikat kita

WHY CHOOSE US?
1.Our company has 13 years experience in battery R&D,producing and the overseas marketing.
2.Flexible customizing and Manufacturing
3.6,000,000Ah monthly production capacity
4.Each process for making battery were under strict management and control,all of the battery were under full inspection before delivery.
5.With professional R&D team, experienced workers and advanced requirements, we are determined to provide you high-quality battery.

6.Support prompt shipment and sample quality products,track the cargo in time after delivery.More than one year Guarantee,we will give instruction for how to use our products.



Soalan Lazim

Q: What is your warranty?
A: We guarantee the quality before the item is shipped. The warranty will be offered based on different type of battery. Any damages caused by improper use are not covered by our warranty.

Q: What is delivery time if we place an order?
A: It depends order quantities. Usually, we can deliver goods within 3 -5 working days for small orders, for more QTY. order, let's confirm when you place offical order.

Q: Are your factory or trading company?
A: We are professional lithium-ion rechargeable batteries manufacturer with our own factory and brand. We provide all kinds of OEM/ODM services for clients around globe.
