Spesifikasi
Elektrik | Voltan Nominal | 12.8V |
Kapasiti Nominal | [email protected] | |
Tenaga | 3840Wh | |
Rintangan Dalaman | ≤35mΩ | |
Kehidupan Kitaran | 2000-6000 Cycles @ 0.2C Charging/Discharging ,Until 70% Capacity | |
Pelepasan Diri | ≤3.5% sebulan dengan harga 25 ℃ | |
Pengecasan Piawai | Voltan Pengecasan Maks | 14.0 ~ 14.6V |
Mod Pengecasan | Pada suhu 0 ℃ ~ 45,, dicas 14.6V pada arus tetap 0.2C, dan kemudian, berubah terus dengan voltan malar 14.6V sehingga arus tidak lebih dari 0.02C | |
Mengecas Semasa | 100A | |
Max. Pengecasan Semasa | 100A | |
Pelepasan Piawai | Melepaskan Arus | 100A |
Maks. Arus Berterusan | 100A | |
Max.Polse Semasa | 200A (<3S)) | |
Menolak Voltan Pemotongan | 10.0 | |
Keadaan Operasi | Mengecas Suhu | 0 ℃ hingga 45 ℃ (32 ℉ hingga 113 ℉) @ 60 ± 25% Kelembapan Relatif |
Suhu Pelepasan | -20 ℃ hingga 60 ℃ (-4 ℉ hingga 140 ℉) @ 60 ± 25% Kelembapan Relatif | |
Suhu Penyimpanan | 0 ℃ hingga 45 ℃ (32 ℉ hingga 113 ℉) @ 60 ± 25% Kelembapan Relatif | |
Rintangan Debu Air | IP55 | |
Struktur | Sel & Format | 4S1P, prismatic |
Selongsong | Plastik | |
Dimensi (L * W * H * TH) | 522*270*217*217mm | |
Berat | Approx. 27.5Kg | |
Terminal | M8 |
Can add LCD fuel gauge.
Can add Control switch.
Can add Coulomb lamp display.
Can add USB connector.
◆ Menggunakan teknologi sel fosfat besi litium, keselamatan yang unggul, ribuan kitaran, 100% DOD, dalam keadaan normal.
Protection Perlindungan automatik terbina dalam untuk over-charge, overcharge, over current dan over suhu.
◆ Bebas penyelenggaraan.
◆ Pengimbangan sel dalaman.
Weight Berat lebih ringan: Lebih kurang 40% ~ 50% berat bateri asid plumbum yang setanding.
◆ Boleh dicas menggunakan kebanyakan cas asid plumbum standard (set).
Range Julat suhu yang lebih luas: -20 ℃ ~ 60 ℃.

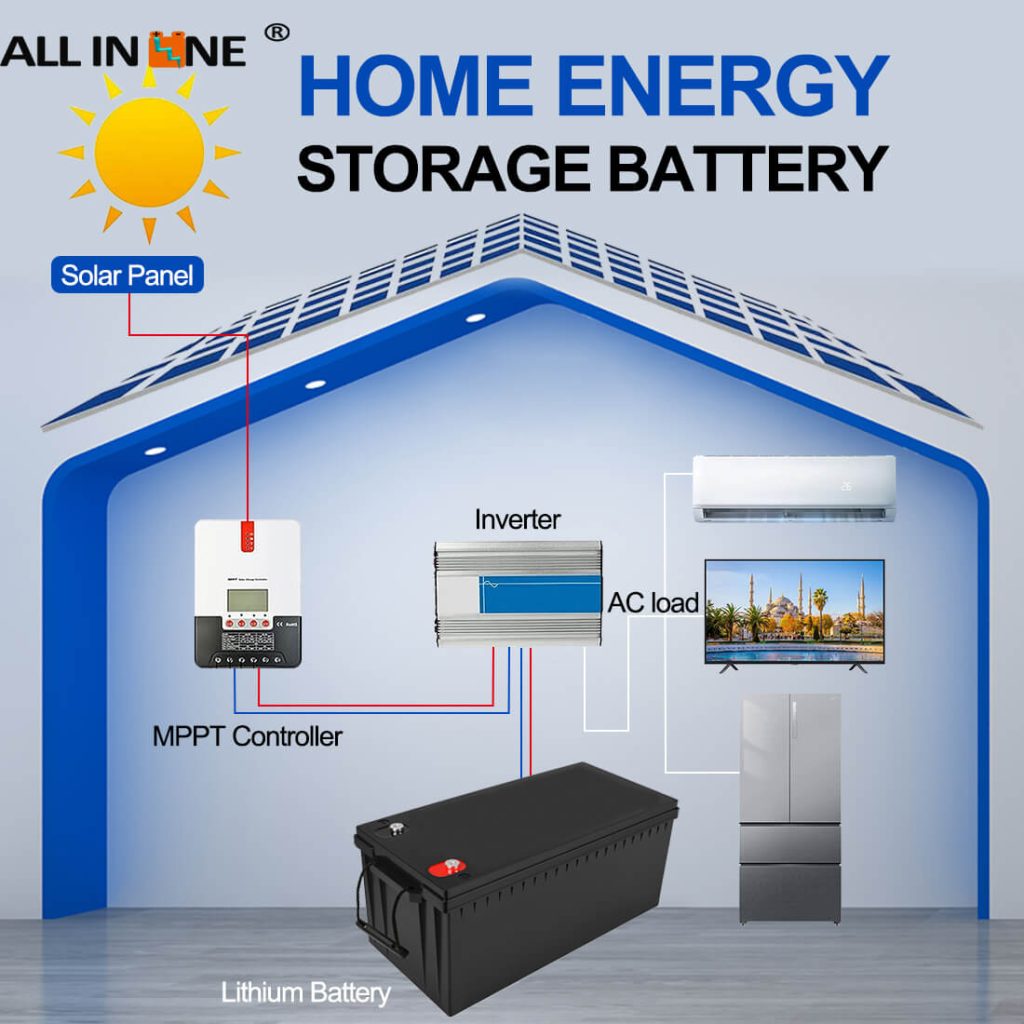

◆ Sokongan untuk pengembangan aplikasi Siri (sehingga 51.2V) dan dua secara selari.
Kilang Kami
Pembungkusan Dan Penghantaran
Soalan Lazim
Q1. Is it OK to print my LOGO on the product?
A. Ya. Sila maklumkan secara rasmi sebelum pengeluaran kami dan sahkan reka bentuk terlebih dahulu berdasarkan sampel kami.
Our factory supports Customized: case, size, battery structure, logo, packaging etc.
Q2. Can I have a sample order?
A.Yes, we welcome sample order to test and check quality.
Low MOQ, 1pc for sample checking is available.
Q3:Which product is hot sale in your company?
A: LiFePO4 battery 24Ah,50Ah,100Ah,200Ah,280Ah,300Ah; 12V,24V, 48V LiFePO4 battery pack and so on.
Q4. What about the lead time?
A. Sample needs 3-7 days, mass production time needs 7-20 days, it depends on order quantity.
S5. Bagaimana untuk meneruskan pesanan?
A. Firstly let us know your requirements or application. Secondly, We quote according to your requirements or our
suggestions.Thirdly customer confirms the samples and places a deposit for formal order. Fourthly We arrange the production.
Q6.Which certificates do you have?
A: Kami mempunyai CE / FCC / ROHS / UN38.3 / MSDS ... dll.
Q7.How about warranty?
A:3-5 year warranty
Q8: Are these battery packs compatible with my inverter?
A: Yes, Sir. Our battery pack is compatible with most brands of inverters on the market.
Contact us and let me tell you more.
Q9. How do you ship the goods and how long does it take to arrive?
A.It usually takes 5-7 days to arrive. Train and Airline and Sea(DDP) shipping is also optional.
Q10: How do I know whether you've shipped my order or not?
A: Tracking No. will be offered as soon as your order be shipped out. Before that, our sales will be there to check the packing
status, photo you the done order and let you know the forwarder picked it up.
