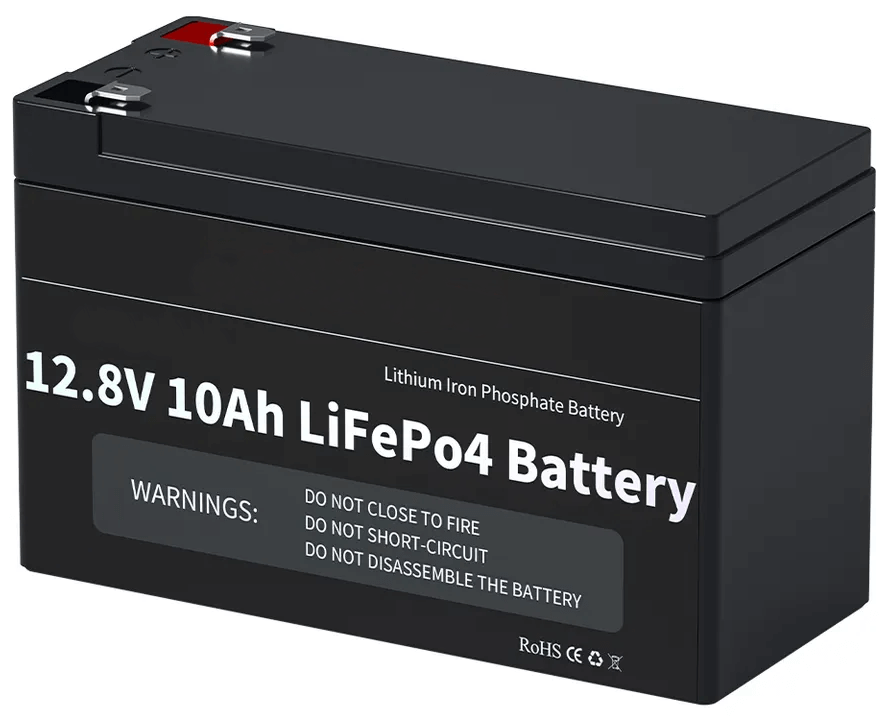

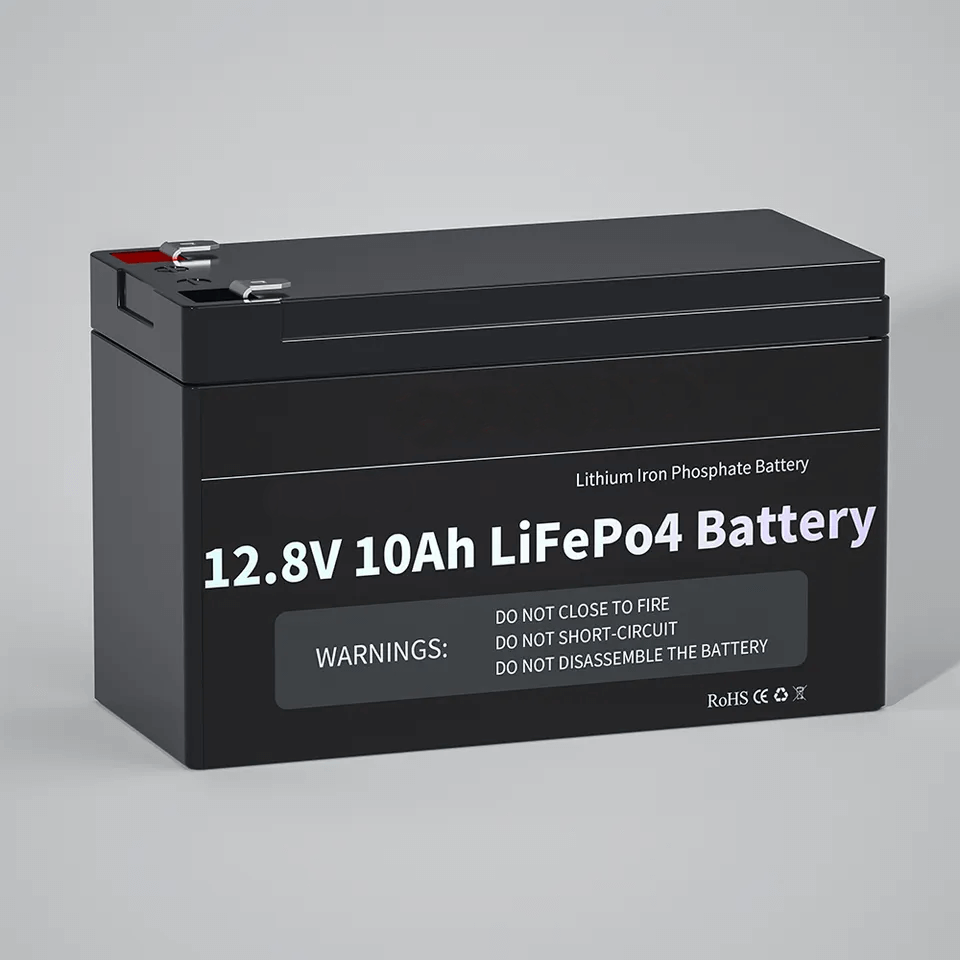

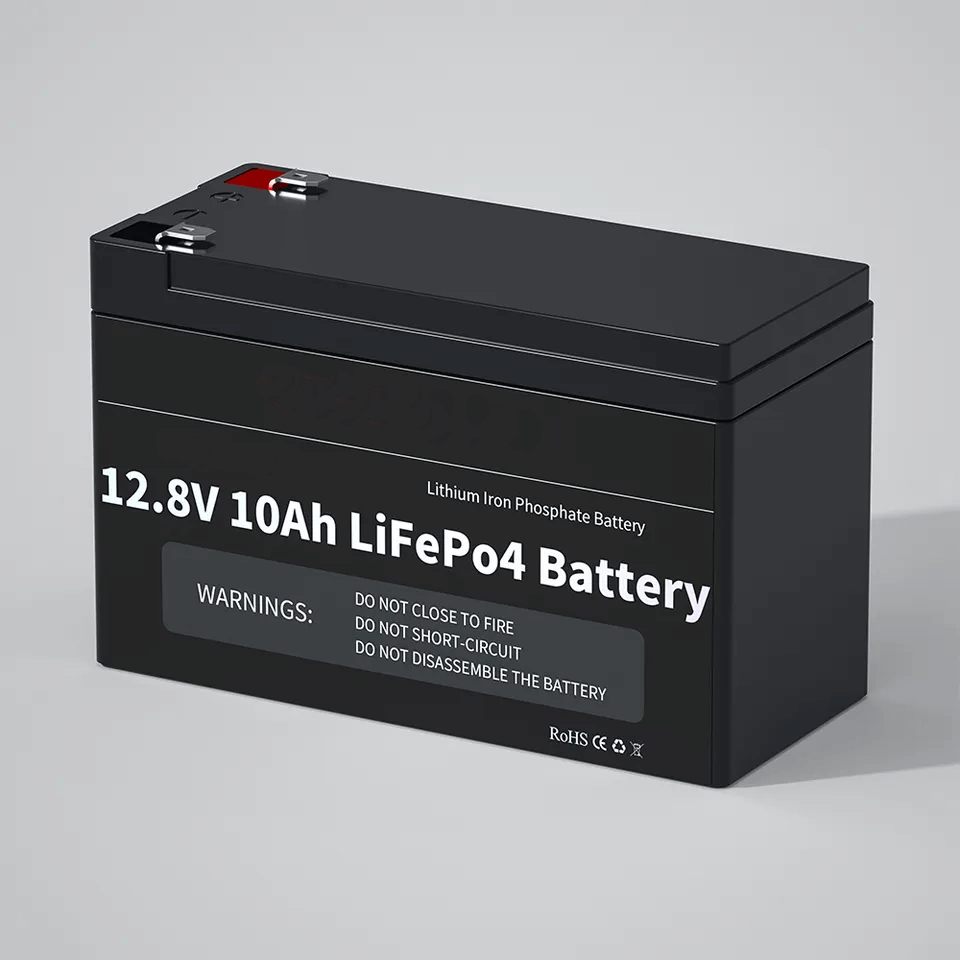

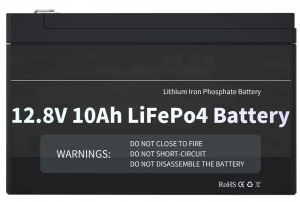

Penggantian Bateri Asid Plumbum 12V 10Ah Bateri Litium Ion

2023-05-23 07:02

Tidak.	PERKARA	SPESIFIKASI
1	Nombor model	AIN-1210
2	Kapasiti Dinilai	10Ah
3	Voltan Nominal	12.8V
4	Life Exception	Higher than 80% .of the Initial Capacity of the Cells
5	Lepaskan voltan pemotongan	8V
6	Mengecas voltan pemotongan	14.6V
7	Cell and assembly method	26650-3.6AH
8	Housing material	ABS + PC
9	Caj standard	0.5C constant current(CC) charge to 14.6Vthen constant voltage (CV) 14.6V charge till charge current decline to ≤0.05C
10	Pelepasan standard	Constant current 0.5C Cut-off voltage8V
11	Caj berterusan berterusan maksimum	≤10A
12	Pelepasan berterusan berterusan maksimum	≤10A
13	Peak Discharge	≤25A (7.5 s ±2.5 s)
14	Julat Suhu Operasi	Charge: 0～45℃
		Discharge: -20～60℃（cell surface temperature≤80℃）
15	Julat Suhu Penyimpanan	Less than 1 year : 0～25℃
		Less than 3 months:-10～35℃
16	Berat	Approx: 1.2Kg
17	Dimensi (L * W * H)	151*99*94mm

 Lithium iron phosphate life (LiFePO4)
Ciri-ciri: Compared with other lithium batteries, its theoretical life is 5 to 15years, or 2000 to 8000 cycles. When not in use, the monthly self-discharge loss is only 3%-5%, and the performance is superior.The charging cycle refers to the entire process from full charge to full discharge and then to full charge.

Jaminan kualiti: We will match and balance all batteries before delivery to ensure that the internal resistance, voltage and capacity of the batteries are fully matched and balanced before delivery.

About charging: It is characterized by no memory effect and fast charging. You don't need to put it fully and then charge it.For lithium iron phosphate batteries, the recommended standard charging current is 0.2C, and the maximum charging current is 0.5C.

About safety and environmental protection: Lithium iron phosphate battery is environmentally friendly, non-toxic, does not cause pollution, does not contain heavy metals, and is a true green battery. Safety comes from the stability of the positive electrode material and the reliable safety design, which will not cause an explosion even in a severe collision.

Permohonan

Application range: Suitable for DIY RV battery, solar energy storage, electric tricycle, electric vehicle, high-power inverter, communication base station, mobile power station, electric vehicle, emergency power UPS, electric motor, electric tricycle, power generation and four-wheel electric Car etc.

Kilang Kami



Masa penghantaran
Normally delivery within 7-20days, but can arrange in advance if order confirm or produce faster according to quality or other reason.
Pembayaran
1. Kami menerima T / T, PAYPAL, Western Union, Wang Tunai dan sebagainya.

2. FOB , EXW and CIF all are available
3. Samples can accept Paypal
Shipping way
DHL, UPS, Fedex, Special Line, Sea shipping, Customer own forwarder

Soalan Lazim

Q: Your factory or trading company?
A: We are a professional battery manufacturer with our own factory and brand. We provide various OEM/ODM services to customers all over the world.

Q: Where is your company's main market?
A: Our company focuses on high-quality batteries for North American, European, Korean and Japanese markets.

Q: What are your advantages compared to other suppliers?
a) High quality battery: our battery has enough capacity, low RI, Before shipping, we will check the product and make sure the quality is approved by the customer.
b) Better Service: We always provide the needs of our customers. Respond to customer questions in a timely manner. Provide customers with the best project solutions. We ship on time.

Q: Does the shipping way to our country include tax?
A: It depends on the country and the shipping way you choose. Most Asian countries, most European countries, the United States, and Canada have tax-included shipping channels if needed.

Q: How to proceed with an order?
A: Firstly let us know your requirements or application. Secondly, We quote according to your requirements or our suggestions. Thirdly, customer confirms the samples and places a deposit for formal order. Finally, we arrange the
production and then delivery.

Q: What are your payment and delivery terms?

A: Payment terms: By T/T, 30% deposit, and balance all before shipment. For small amounts, we also accept payments via PayPal.

Q: Which company will be used for shipment? DHL? UPS or something else?
A: Usually, for small batteries, will ship by DHL, UPS and FedEx. But for the larger batteries, will ship by Sea. And can provide the DDP service.

Q: What is your package like? Can I have a customized package?
A: We have the factory's current standard packaging, the customized printed logo should meet the buyer's requirements, the additional cost will be borne by the buyer, please contact us for more details.

Q: Can we visit your factory before placing an order?
A: Of course there is no problem. We welcome you to visit the factory at any time.
