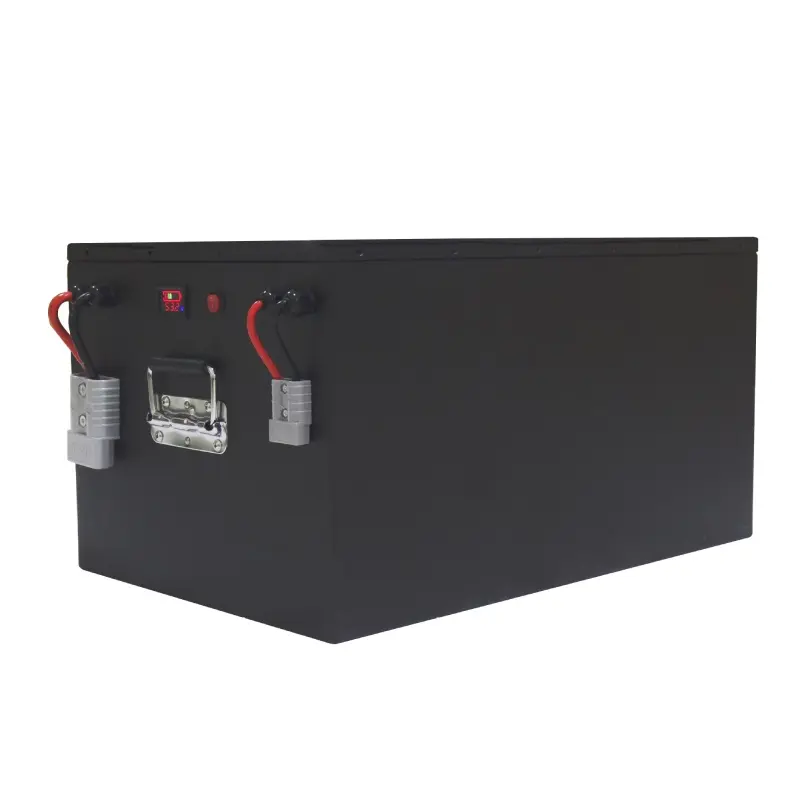

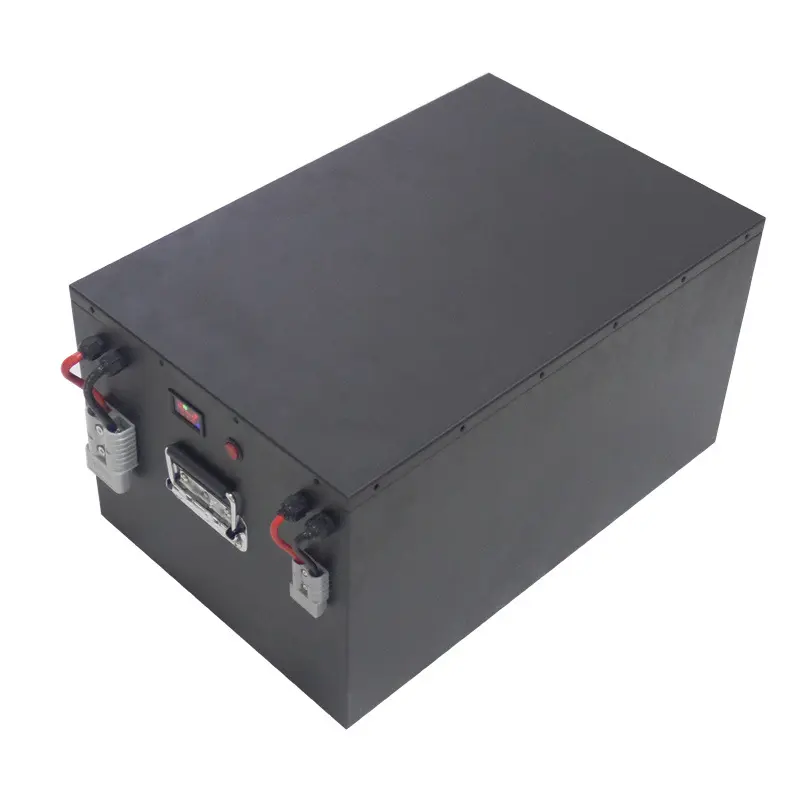

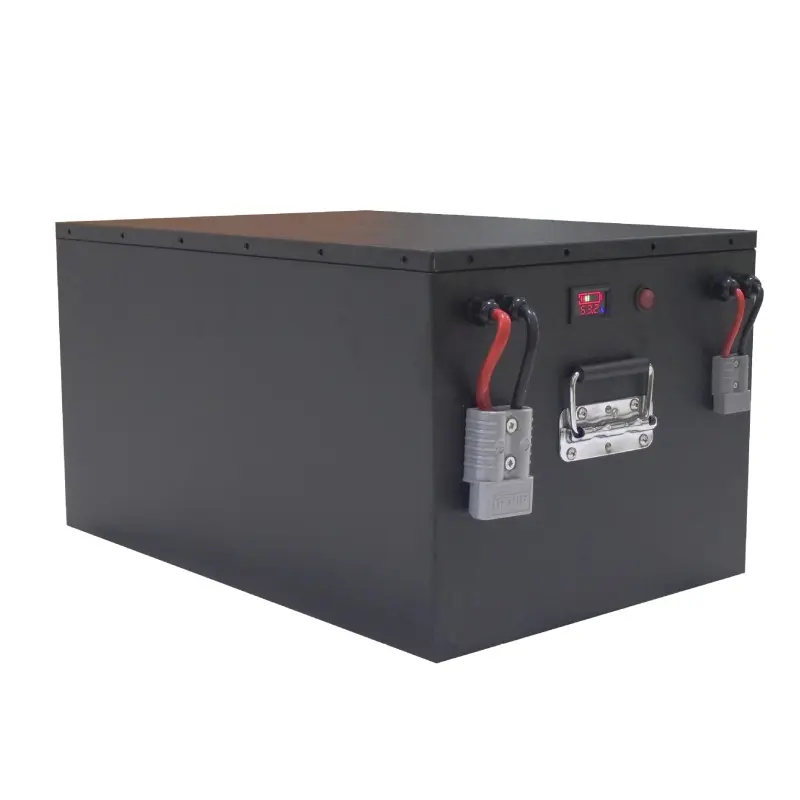

Lifepo4 Lithium Iron Phosphate Battery 72V 50Ah For Ebike Motorcycle RV Golf Cart

2023-06-01 02:15

Spesifikasi

Voltan Nominal72V
Kapasiti Nominal50Ah
Rintangan Dalaman≤220mΩ
Kehidupan Kitaran2000 times at 85% dod
5000 times at 65% dod
8000 times at 40% dod
End of charge Voltage14.6V
End of charge Current100mA
Max.Continuous charge current50A
Kaedah Pengecasan0.2C (0.5A) CC/CV
End of discharge Voltage9.2V
Max. Pluse Discharge Current50A/10S
Charge Temp0 ~ 45 ℃
Discharge Temp-10~55℃
Storage Temp-10 ~ 45 ℃
Dimension(D×W×H)332*170*220mm
Berat≤20Kg
Dibina dalam Sistem Perlindungan Bateri AutomatikYa

Charge plugs and Discharge connectors optional

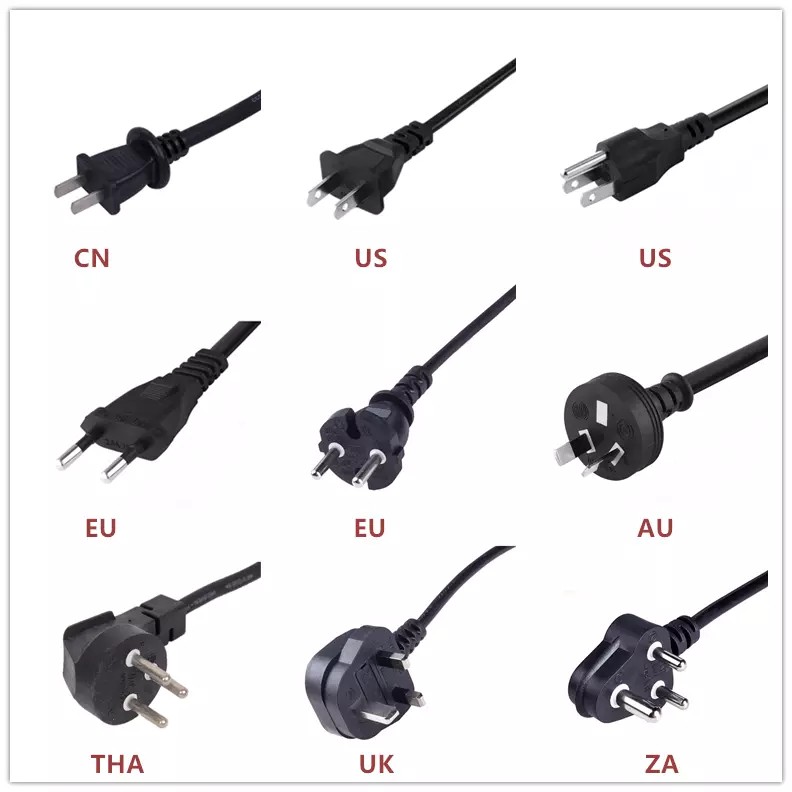

1.Charger Plug: US EU UK AU plugs optional, will provide according to delivery country if without request

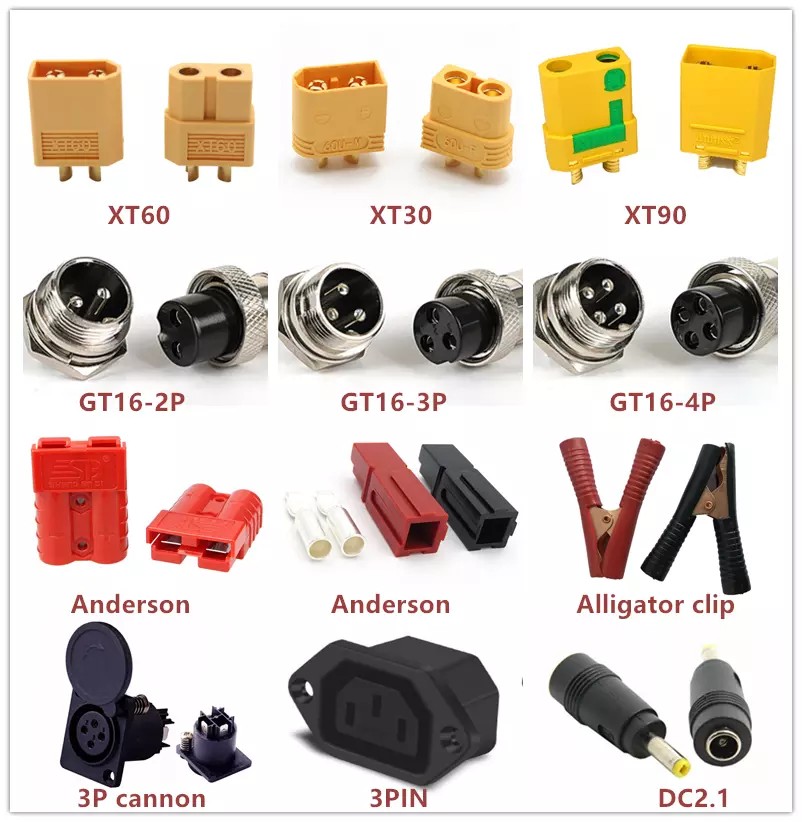

2.Discharge Connector: There are 12 kinds optional as below picture, will provide naked cable or soldered with default connector if without requested.

ciri-ciri

1.Lighter weight, smaller size

2.High temperature performance

3.Extremely safe, no explosion, no fire under collision

4. Rintangan pelepasan yang berlebihan dan pengekalan caj

5.Strong charging acceptance and quick-charging capability

6.Maintenance-free and no acid or water for maintenance in usage

7.Large capability and long life for all high power output applications

8.Environmentally friendly non-toxic, non-contaminating, no rare metal.

9.Low self-discharge and good discharge performance at low temperature

10.Excellent large current discharge performance especially in startup and climbing

OEM

We also can customize the battery 12v/24v/36v/48v/72v 100h,120ah,200ah,300ah,400ah,800ah with metal box. The size and shape are flexible according to your given size. And if necessary, we can offer a remote LCD display to monitor the battery status.
To welcome the world cooperation we accept OEM with your logo design.



 Permohonan

Permohonan

* Electric Vehicles for Commercial and Commuting * Electric Scooter * Golf Cart/ troller * Electric Mobility * Electric Motorcycle * Electric Bicycle * Electric Wheelchair * Electric Power Mower * RV (Recreational Vehicle) * AGV (Automatic Guided Vehicle) /AGV cars/ AGV robots/ Self-guided



Kilang Kami

Soalan Lazim

1, S: Apakah produk utama dalam AIN?
A: Rechargeable battery. NiMH, Li-ion, Lipo battery and power battery pack.
2, Q: Apa itu bayaran berlebihan?
A: Selepas mengecas, menguji keadaan dan kapasiti awal bateri. Cas kepada 10.0V pada arus 3C, kemudian cas kepada 0.01C pada mod CV.
Perhatikan perubahan dalam penampilan bateri.
3, Q: Apa itu pelepasan berlebihan?
A: Selepas mengecas, uji keadaan awal bateri. Apabila bateri normal, nyahcas kepada 0V pada 0.5C. Perhatikan perubahan dalam
penampilan bateri.
4. Q: Bolehkah saya mempunyai pesanan sampel?
J: Ya, kami menerima pesanan sampel untuk menguji dan memeriksa kualiti. Bateri boleh dibuat mengikut keperluan.
5. Q: Adakah anda mempunyai had MOQ?
J: Ya, kami mempunyai had MOQ untuk pengeluaran besar-besaran, tetapi bergantung pada model bateri. Sila hubungi kami untuk maklumat lanjut.
6. Q: Bagaimana dengan masa utama?
J: Sampel akan memakan masa 5-7 hari bekerja. Pengeluaran besar-besaran akan memakan masa 25-30 hari. Ia bergantung pada kuantiti.
7. Q: Bagaimana dengan masa penghantaran dan penghantaran?
A: Generally, battery will be shipped via Express, such as DHL, TNT, FedEx and UPS, delivery time is 3-5 business days. Or DDP service, delivery time is 11-15 business days. Airline and sea shipping also available.
8. Q: Bagaimana dengan perkhidmatan selepas jualan?
A: We will offer you 2 years guarantee. If there are any problems, please inform us, we will offer you positive solutions.



Nota: Kami adalah pengeluar bateri. Semua produk tidak menyokong runcit, kami hanya menjalankan perniagaan B2B. Sila hubungi kami untuk harga produk!
