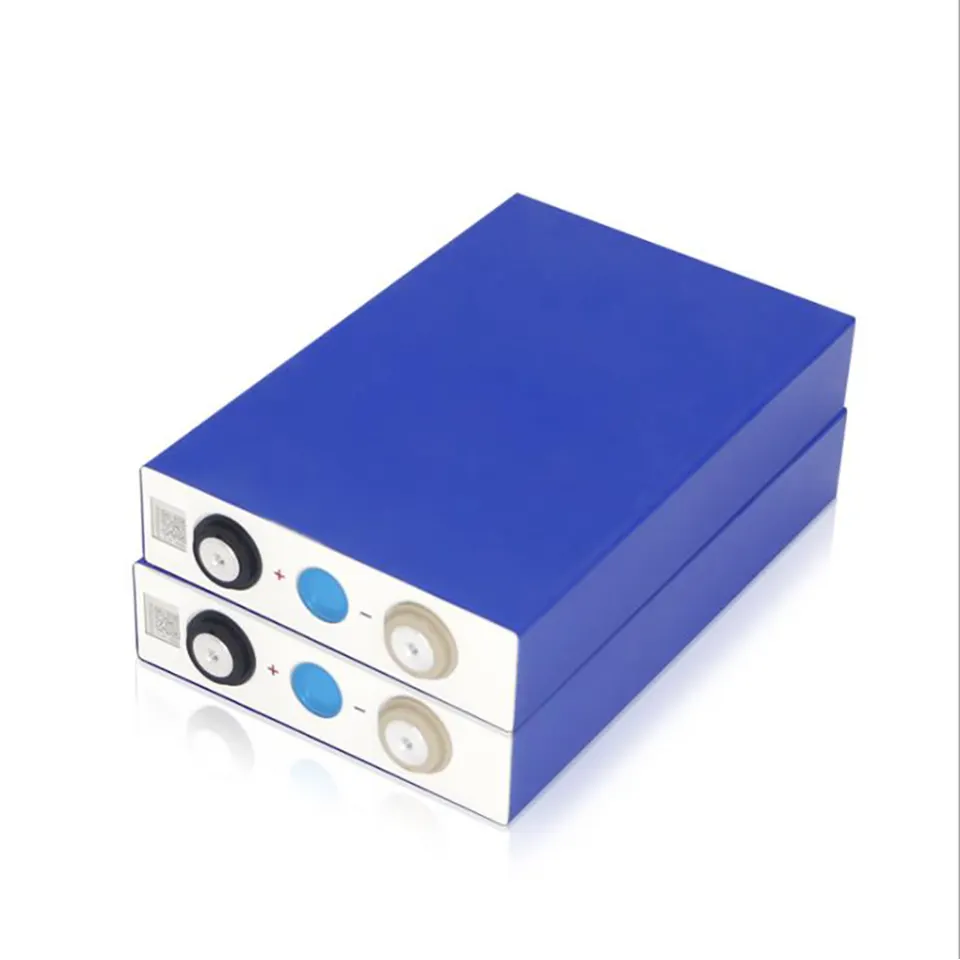

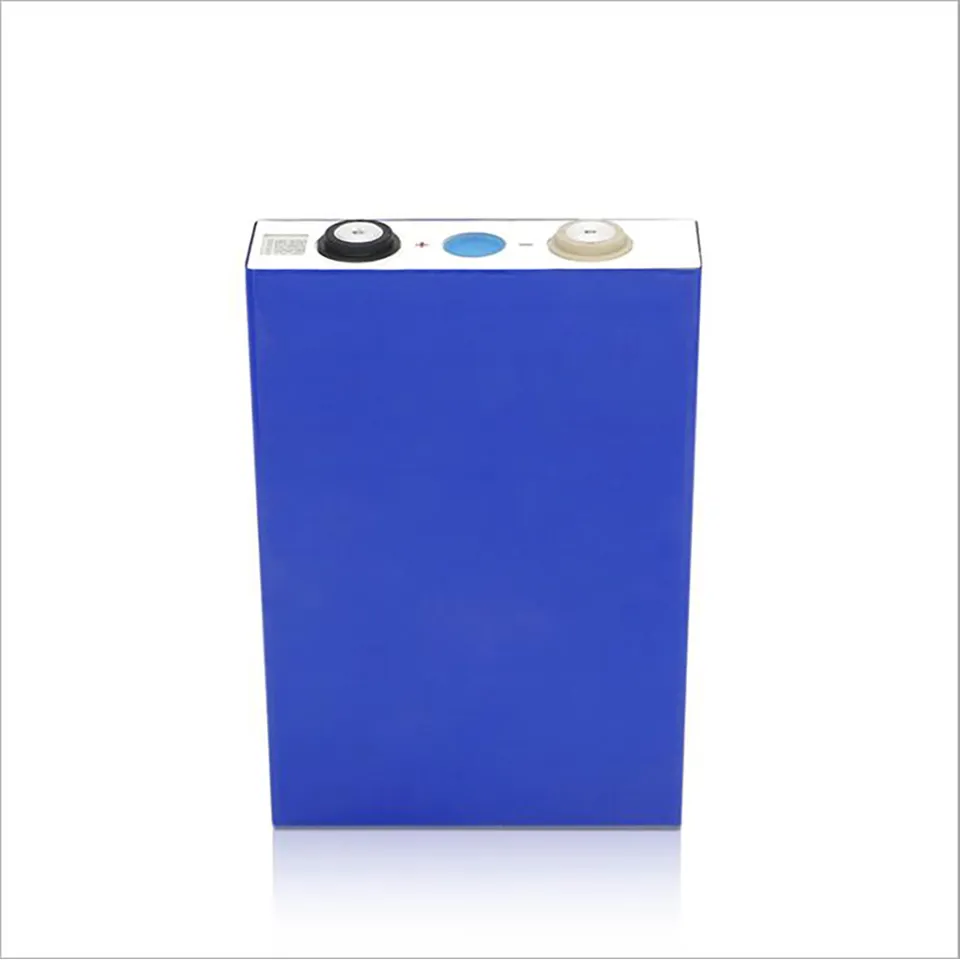

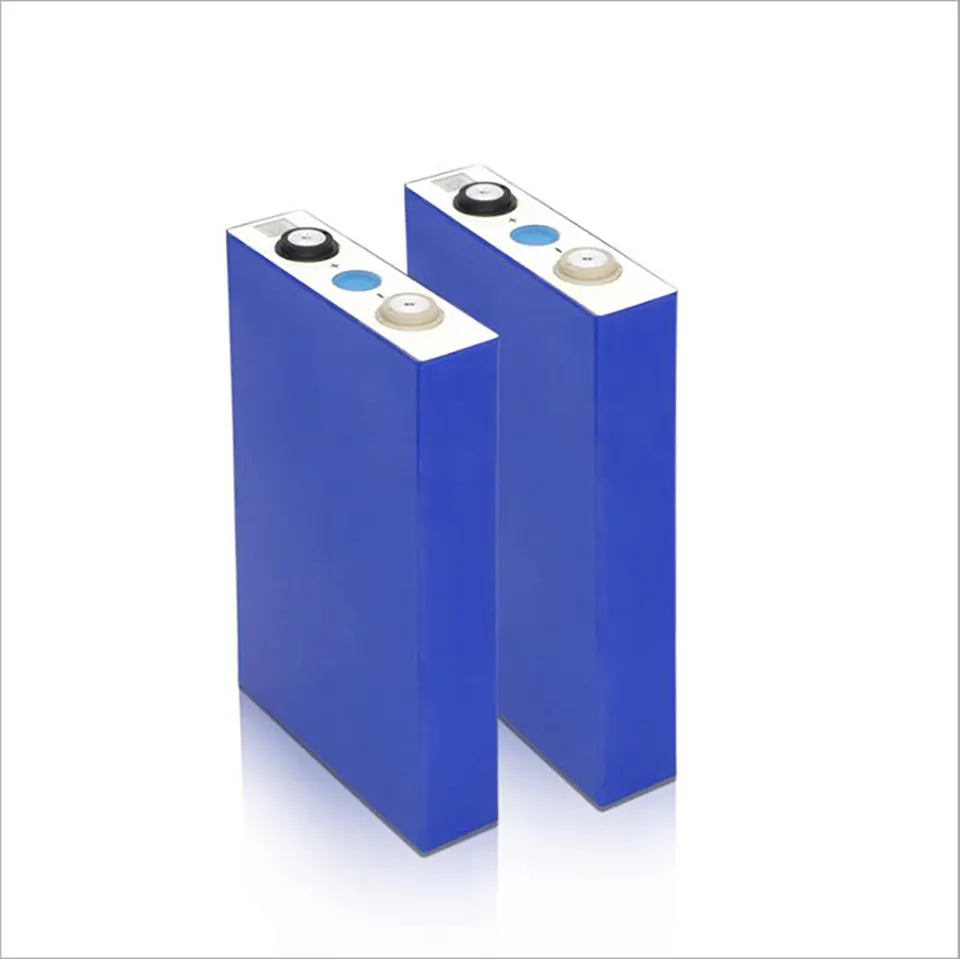

Prismatic Lifepo4 Battery 3.2V 90Ah

2023-06-13 02:44

Spesifikasi

#	Item			Parameter	Catatan
1	Kapasiti Nominal			90Ah	(25±2)°C, Standard Charge And Discharge
2	Typical Voltage			3.2V
3	AC Impedance Resistance(1KHz)			≤0.5mΩ
4	Standard Charge And Discharge	Charge/Discharge Current		1C/1C	(25±2)°C
		Cut Off Voltage Of Charge/Discharge		3.65V/2.5V
5	Maximum Charge/Discharge Current	Continuous Charge/Discharge		1C/1C	According to continuous/ pulse charge and discharge ammeters
		Pulse Charge/Discharge(30s)		3C/3C
6	Recommended Scope Of SOC			10%~90%	N.A
7	Suhu Mengecas			0°C~55°C	According to continuous/ pulse charge and discharge ammeters
8	Melepaskan Suhu			-20°C~55°C
9	Suhu Penyimpanan		Short Term ( Within 1 month)	-20 ° C ~ 45 ° C	N.A
			Long Term ( Within 1 year)	0 ° C ~ 35 ° C
10	Storage Humidity Range			<95%
11	Self-discharge rate per month			≤3%/month	Temperature: (25±2)°C,Storage Scope Of SOC: 30%~50%SOC
12	Dimensi		Lebar	130.3±0.5mm	Refer to Appendix ǀ
13			Thickness( 30% SOC)	36.7 ± 0.5mm
14			High( Total)	200.5 ± 0.5mm
15			High（ Subject）	195.5 ± 0.5mm
16			Tabs Distance	67.0 ± 1.0mm
17	Berat Bateri			1994±50g

Attentions

• It is necessary to ensure that the voltage, current and temperature of the cell are monitored and protected when the cell is charged and discharged.
• Please keep the cell away from heat source, fire source , strong acid, strong alkali and other corrosive environment.
• Do not short connect or install the battery with incorrect polarity at any time.
• Do not mix up with cells from different models or manufacturers.
• Do not use external force to make the cell fall, impact, puncture, do not disassemble the cell or change the external structure.
• Please keep the cell’s charge under 30% ~ 50%SOC, and avoid direct sunlight or high temperature and humidity environment when the battery is not used for a long time,
• Please wear protective devices such as rubber gloves when operating the battery.

Please immediately stop using if there have leakage, smoking or damage with cell , and contact our company to deal with.

Permohonan

Kilang Kami

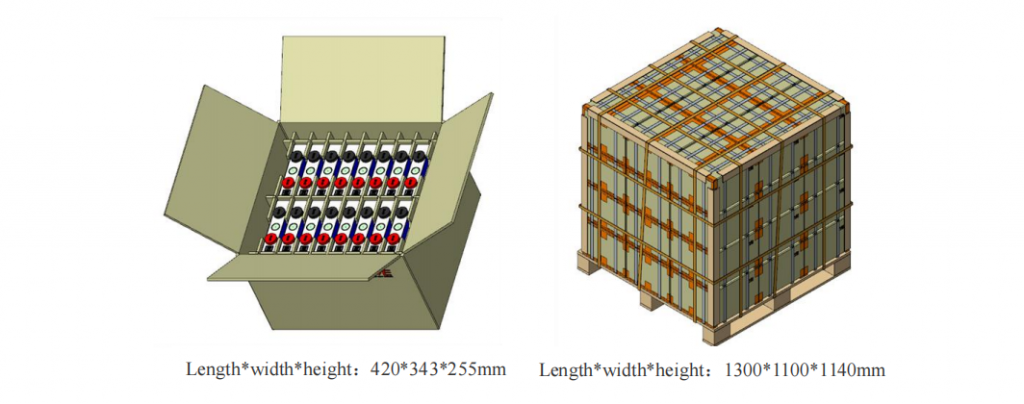

Pembungkusan Dan Penghantaran

The cells should be packed into boxes under the charge of 30% ~ 50%SOC. During the transportation, they should be protected from severe vibration, shock , extrusion, sun or rain.

Penyimpanan

Cells should be stored (more than 1 month) indoor with a dry and clean environment at 0 ℃~35 ℃, and charged and discharged every 6 months. Keep the last charge under 30% ～ 50%SOC.

Soalan Lazim

S1. Bolehkah saya mempunyai pesanan sampel?
A. Ya, kami mengalu-alukan pesanan sampel untuk menguji dan memeriksa kualiti.

S2. Bagaimana dengan masa utama?
A. Sampel memerlukan 3 hari, masa pengeluaran besar-besaran memerlukan 5-7 minggu, bergantung pada kuantiti pesanan.

S3. Adakah anda mempunyai had MOQ?
A. Ya, kami mempunyai MOQ untuk pengeluaran besar-besaran, bergantung pada nombor bahagian yang berbeza. 1 ~ 10pcs pesanan sampel ada. MOQ rendah, 1 pc untuk pemeriksaan sampel ada.

S4. Bagaimana anda menghantar barang dan berapa lama masa untuk tiba?
A. Biasanya tiba 5-7 hari untuk sampai. Kapal terbang dan laut juga menjadi pilihan.

S5. Bagaimana untuk meneruskan pesanan?
A. Pertama-tama beritahu kami keperluan atau permohonan anda. Kedua, Kami memetik mengikut keperluan anda atau cadangan kami. Pelanggan ketiga mengesahkan sampel dan membuat deposit untuk pesanan rasmi. Keempat Kami mengatur pengeluaran.

S6. Adakah OK untuk mencetak logo saya pada produk?
A. Ya. Sila maklumkan secara rasmi sebelum pengeluaran kami dan sahkan reka bentuk terlebih dahulu berdasarkan sampel kami.

Q7. Sijil apa yang anda ada?
A: Kami mempunyai CE / FCC / ROHS / UN38.3 / MSDS ... dll.

Q8. Bagaimana dengan jaminan?
J: Waranti 3 tahun
